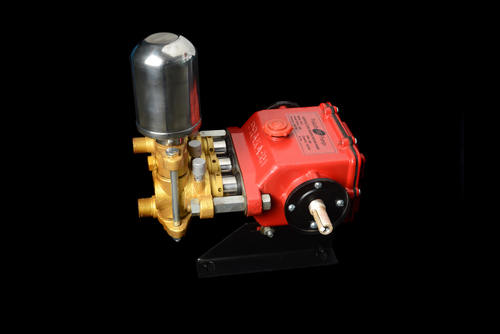

Water Piston Pumps

Water Piston Pumps
Water Piston Pumps
Product Code : RP 1
Brand Name : PRAKASH
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Inlet/Outlet
  • 1/2" X 1/2 "
  • Flow Rate
  • 11LPM
  • Theory
  • Reciprocating Pump
  • Product Type
  • Water Piston Pump
  • Capacity
  • 10 LPM
  • Structure
  • Piston Pump
  • Power
  • Electric Watt/Volt ( w/v)
  • Weight (kg)
  • 6 Kilograms (kg)
  • Drive Type
  • Belt Drive
  • Fuel Type
  • Diesel
  • Pressure
  • Low Pressure
  • Power Source
  • Electricity
  • Usage
  • Water, Oil Well, Water Well, Other
  • Transmission Type
  • Belt
  • Start Method
  • Electric Start
  • Dimension(L*W*H)
  • 10*8*11 Inch (in)
Product Description

We immensely feel please to offer an exclusive gamut of Water Piston Pumps. Offered pumps are precision engineered with the aid of sophisticated technologies at our well-maintained manufacturing unit. These pumps are widely preferred in automobile service station, boiler feed pump, in spraying agro chemicals in the orchards & fields, hydro testing for vessels valves etc. In addition, these Water Piston Pumps are also used in spray drying systems and jet spray cleaning system.

Features:

  • Heavy duty and power efficient
  • Sturdy construction
  • Develops maximum pressure upto 400 PSI at 960 RPM
  • Horizontal stainless steel piston
  • All working part are lubricated by oil bath.
  • Provides by-pass cum pressure regulating valve and Pressure vessel.
  • Capacity is 10 LPM to 36 LPM.

Applications:

  • Spraying Agro chemicals in the orchards and the fields.
  • Automobile Service Station
  • Boiler feed pump
  • Hydro Testing for vessel valves etc.
  • Jet spray cleaning system
  • Spray drying systems.

Technical Specification for related series:

Sr. No Description Model
RP 1 RP 2 RP 3
1 No. of Piston 1 2 3
2 Piston Stroke 20mm 20mm 20mm
3 Pistone Diameter 30mm 30mm 30mm
4 Suction Size 1/2 " BSP 1/2" BSP 3/ 4" BSP
5 Delivery Size 1/2 " BSP 1/2 " BSP 1/2 " BSP
6 By- Pass 1/2 " BSP 1/2 " BSP 1/2 " BSP
7 Capacity 11 LPM 22 LPM 35 LPM
8 Pressure 400 psi 400 psi 400 psi
9 Pump Speed (Max) 960 RPM 960 RPM 960 RPM
10 Drive Pully Drive Pully Drive Pully Drive
11 Speed Ratio 01:01.50 01:01.50 01:01.50
12 Horse Power 1 HP 2 HP 3 HP
13 Overall Dimension (LWH) 10" X 8" X 11" 12" X 10" X 14" 12" X 12" X 13"
14 Weight 6 KG 10 KG 15 KG
